Sound Proof (vibration damping sheet)

Model Number

SF-2R incombustible, GW-4R incombustible, SF-2RT

Product Description

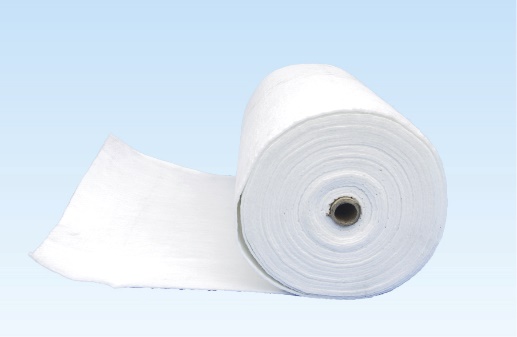

Sound Proof is a new type of vibration damping sheet. Sophisticated vibration-damping resin is impregnated into polyester non-woven fabric and glass fiber felt in the sheet.

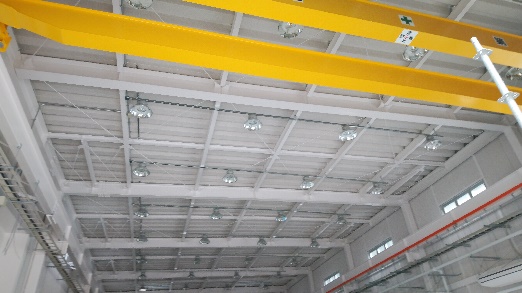

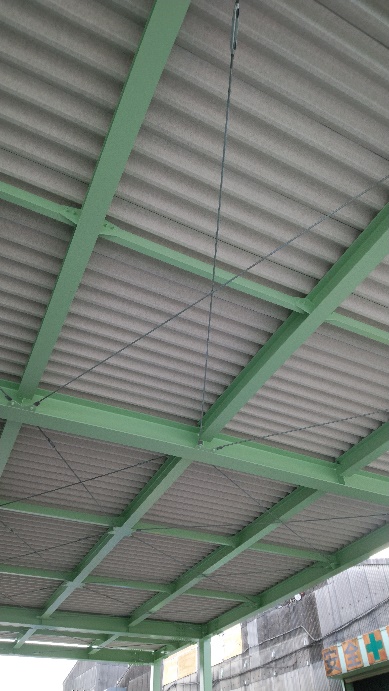

This is perfect for "rain sound reduction, heat insulation, and condensation prevention" for steel roofs and metal tiles.

Properties

① Rain sound from a steel roof and metal tiles can be reduced because of great rain sound reduction and vibration damping effect.
② Thermal Insulation and condensation prevention effects. These functions can be added into roof material.
③ High weather resistance: It can make tearing and flaking less due to deterioration over time.
④ Fire Prevention
Non-combustible material certified by a minister of Land, Infrastructure, Transport, and Tourism.
SF-2R (incombustible) ：NM-4055（with an iron plate), GW-4R(incombustible)：NM-4476（single unit）

Our Products

Sound Proof SF-2R (incombustible), Sound Proof GW-4R(incombustible) and Sound Proof SF-2RT incombustible

Dimension

e.g., t2×920×100ｍ, t4×920×50ｍ

Weight

SF-2R (incombustible)…600g/㎡、GW-4R (incombustible) …700g/㎡
